Product Description

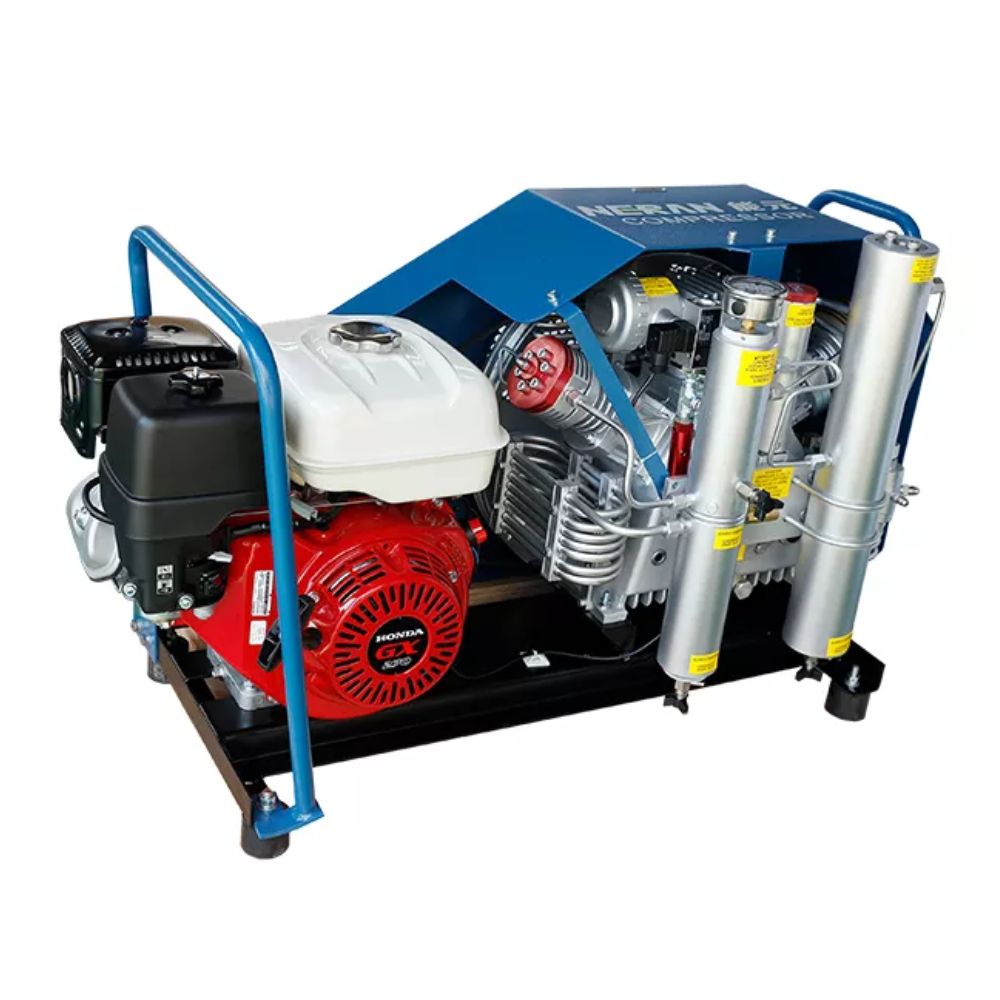

NCH-16G air compressor has relatively light weight and small size which allows mobility and portability. It’s equipped with two filling hoses and two filling valves, which can simultaneously inflate two cylinders to improve efficiency. It's applicable for use in firefighting, diving, chemical, mining, rescue, etc. This series driven gasoline engine to meet different application needs.
Features
3 stage compression design
Air quality conforms to EN12021
CE, CCS, ISO9001 certificates
Cooling method: air cooling
Automatic stop is optional
Providing 225 Bar/330 Bar filling pressure for options
Specification
High Pressure Breathing Air Compressor
Charging rate: 265L/min
Max. Pressure:225/330 bar
Compression stages: 3
Gasoline engine Power:5.1KW
Horse power: 7hp
Rated speed:1450rpm/min
Weight: 115kg
Dimension: 95*48*65cm
Drive mode:Honda four-stroke gasoline engine
Air supply interface:G5/8(Two filling hoses/valves)
Lubrication mode: Splash lubrication
Function: Automatic stop (optional), manual condensate drains
Warranty 2 years from date of purchase
